— This kit is made with only stainless steel and aluminum material, and powder coated for interior or exterior applications.
— This handrail is designed for wet environments such as exterior applications and bathroom environments.
— All the hardware and screws are stainless steel. The brackets are made with stainless steel plate and aluminum round bar for high strength and durability in the elements.
— The brackets are installed using stainless steel self tapping screws into the base of the aluminum handrail. As such, they can be moved along the base of the rail to insure that they are able to mount directly into wall studs. The brackets come with wood screws to install into wall studs.
— Designed and manufactured in North Carolina, USA.
Handrail sizes come with the following components:
For all sizes 1.5 feet through 5 feet: Set includes one (1X) handrail and two (2X) handrail brackets with mounting hardware.
For all sizes 6 feet through 7 feet: Set includes one (1x) handrail and three (3x) handrail brackets with mounting hardware.
For all sizes 8 feet through 12 feet: Set includes one (1x) handrail and four (4x) handrail brackets with mounting hardware and one (1x) internal splice. 8-12 foot rails will come as a two piece rail with an internal splice (see photos for view of handrail joint)
For all sizes 13 feet through 14 feet: Set includes one (1x) handrail and six (6x) handrail brackets with mounting hardware and one (1x) internal splice. 13-14 foot rails will come as a two piece rail with an internal splice (see photos for view of handrail joint)
For all sizes 15 feet through 17 feet: Set includes one (1x) handrail and six (6x) handrail brackets with mounting hardware and two (2x) internal splice. 15-17 foot rails will come as a three piece rail with two internal splices (see photos for view of handrail joints)
For all sizes 18 feet through 20 feet: Set includes one (1x) handrail and seven (7x) handrail brackets with mounting hardware and two (2x) internal splice. 18-20 foot rails will come as a three piece rail with two internal splices (see photos for view of handrail joints)
All kits include the following: Phillips head driver, Allen Keys, and drill bit for pre-drilling screws into studs, and installation instructions. Please contact us for any installation questions you may have.

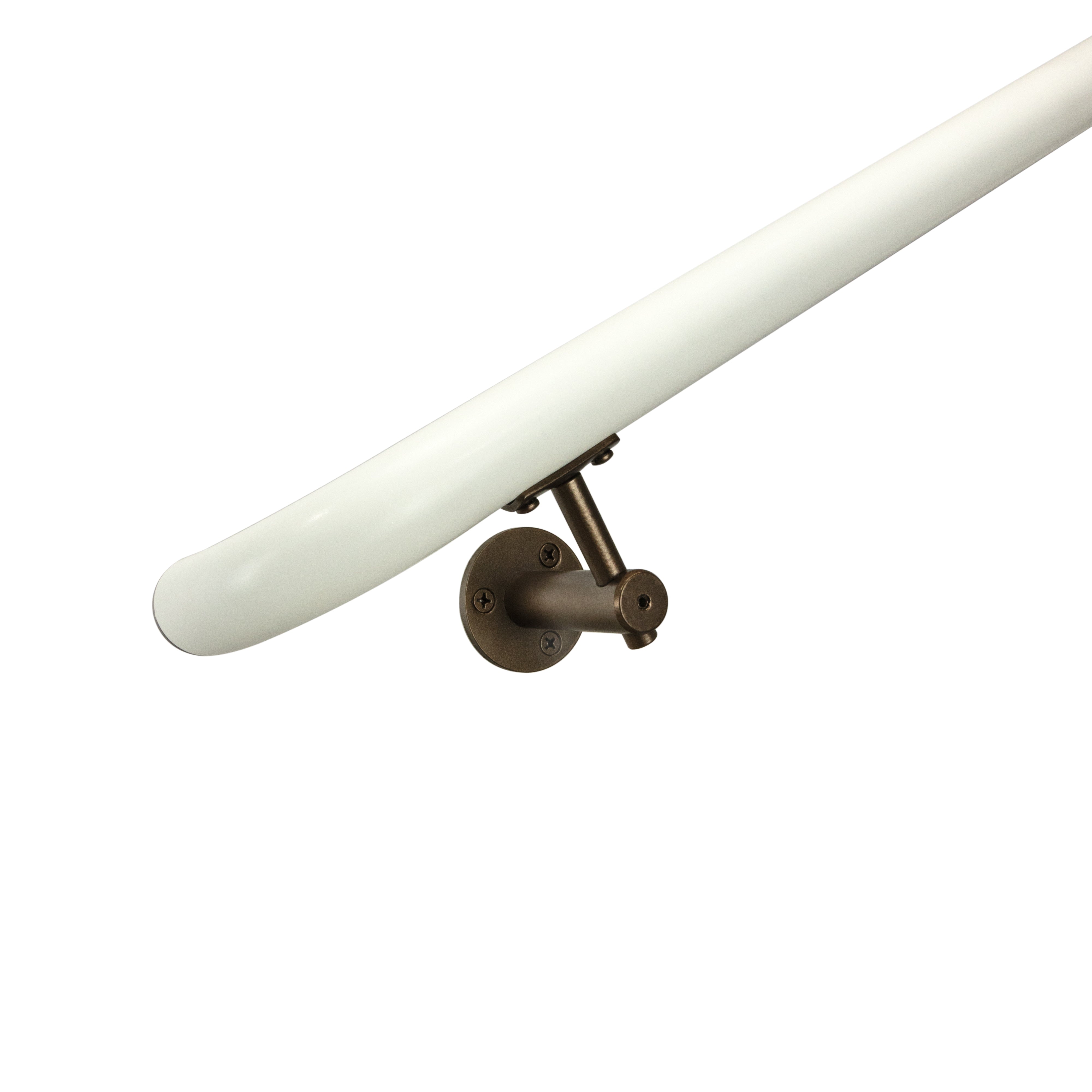

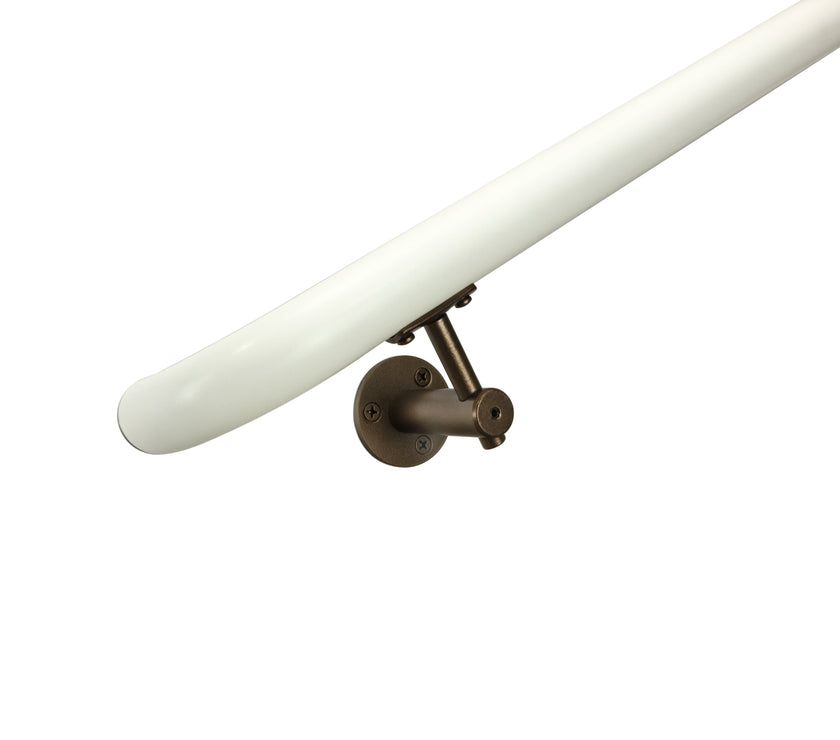

These handrail kits are made from powder coated aluminum to give a simple and elegant look that matches your modern décor. The handrails are made from 1.5” round aluminum stock tube to allow for comfortable daily use.
The distance from the face of the handrail to the wall when installed is 3.5 inches. High strength construction meets load requirements of 200lbs or more. Check your local zoning for any additional requirements. The handrails are designed to have a minimum of 1.5" clearance from the wall to the back of the handrail to meet standard clearance code requirements (see images for technical dimensional drawing).
Matching Stainless steel screws are included.
The handrail brackets are designed to be mounted directly into wall studs.
The handrail comes with powder coated aluminum end caps.
Handrail is powder coated satin white.
Brackets are powder coated bronze. Aluminum end caps are powder coated bronze.
For indoor or outdoor use.
The handrail brackets are made from 1/8 inch flat stock stainless steel, 3/16 inch flat stock stainless steel plate, 1 Inch solid aluminum round bar, and ½ inch solid aluminum round bar
